FF-030PA/PK

	Precious metal-brush motors
	OUTPUT:0.05W-2.2W (APPROX)
	WEIGHT:11g (APPROX)

Typical Applications :
Audio and Visual Equipment> CD/MD Player / Car CD Player / Camcorder
Office Automation Equipment> CD/DVD-ROM Drive
Home Appliances> Blood Pressure Meter

MODEL		VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY					STALL
		OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	TORQUE		CURRENT
		OPERATING RANGE	V	r/min	A	r/min	A	mN·m	g·cm	W	mN·m	g·cm	A
FF-030PA	10180	3.5 - 6.0	5	11700	0.050	9230	0.19	0.50	5.1	0.48	2.35	24	0.70
FF-030PK	09210	1 - 5	5	10500	0.046	8140	0.16	0.44	4.5	0.37	1.96	20	0.55
FF-030PK	08250	1 - 6	6	10500	0.041	8020	0.13	0.43	4.4	0.36	1.81	18	0.43

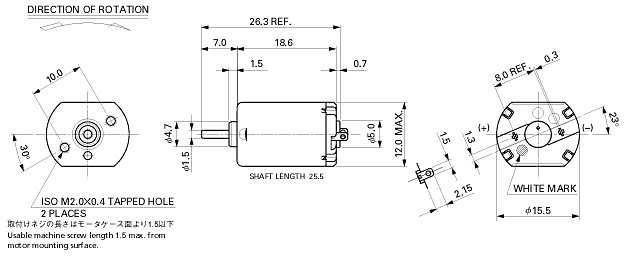

UNIT: MILLIMETERS

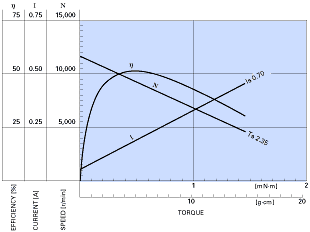

FF-030PA-10180

5.0V

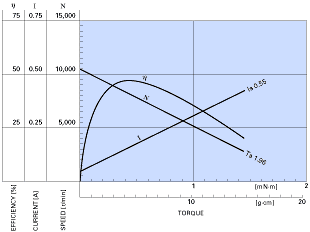

FF-030PK-09210

5.0V
