FF-130RH/SH

FF-130RH/SH

FF-130RH/SH

Precious metal-brush motors
OUTPUT:0.08W-3.3W (APPROX)
WEIGHT:24g (APPROX)

Typical Applications :

Audio and Visual Equipment> CD Player / Tape Cassette Adapter

Office Automation Equipment> CD/DVD-ROM Drive

MODEL		VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY					STALL
		OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	TORQUE		CURRENT
		OPERATING RANGE	V	r/min	A	r/min	A	mN·m	g·cm	W	mN·m	g·cm	A
FF-130RH	15210	1 - 4	3	5400	0.045	4280	0.17	0.57	5.8	0.26	2.74	28	0.65
FF-130SH	11340	3 - 12	7.5	6100	0.033	4920	0.14	1.06	10.9	0.55	5.49	56	0.57
FF-130SH	14230	2.5 - 10.0	3	3600	0.037	2850	0.14	0.74	7.5	0.22	3.53	36	0.53

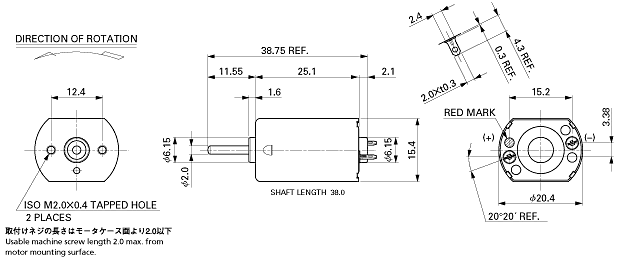

UNIT: MILLIMETERS

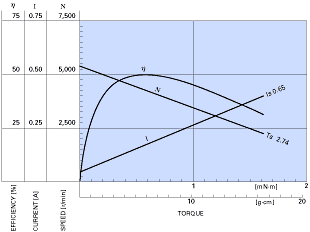

FF-130RH-15210

3.0V

chart

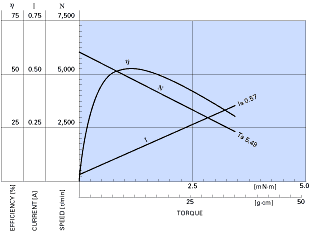

FF-130SH-11340

7.5V

chart
