| MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING
RANGE |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
| V |
r/min |
A |
r/min |
A |
mN·m |
g·cm |
W |
mN·m |
g·cm |
A |

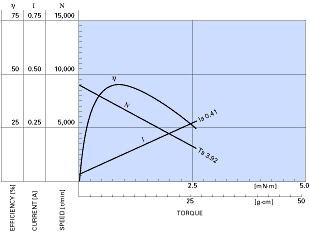

| FK-130RH |
09490 |
6 - 18 |
12 |
9000 |
0.034 |
6990 |
0.12 |
0.88 |
8.9 |
0.64 |
3.92 |
40 |
0.41 |
| 15210 |
4.5 - 6.0 |
4.8 |
8300 |
0.075 |
6540 |
0.28 |
0.89 |
9.0 |
0.61 |
4.17 |
43 |
1.03 |

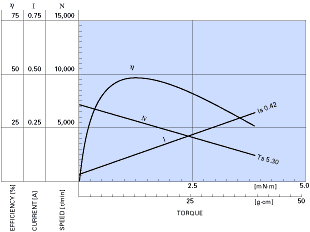

| FK-130SH |
09450 |
6 - 24 |
12 |
7200 |
0.030 |
5680 |
0.11 |
1.12 |
11.4 |
0.66 |
5.30 |
54 |
0.42 |
| 16180 |
4 - 12 |
12 |
18000 |
0.13 |
14900 |
0.62 |
2.36 |
24.1 |
3.68 |
13.7 |
140 |
3.00 | |
