RK-370CA

RK-370CA

RK-370CA

	Carbon-brush motors
	OUTPUT:0.5W-24W (APPROX)
	WEIGHT:51g (APPROX)

	Typical Applications :
	Office Automation Equipment> Printer / Copy Machine
	Precision Instruments> Vending Machine

MODEL		VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY					STALL
		OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	TORQUE		CURRENT
		OPERATING RANGE	V	r/min	A	r/min	A	mN·m	g·cm	W	mN·m	g·cm	A
RK-370CA	10800	12 - 30	24	5100	0.015	4310	0.082	2.58	26.3	1.16	16.7	170	0.45
	18260	6 - 18	13	8500	0.055	7370	0.36	3.52	35.8	2.71	26.5	270	2.35
	081050	12 - 30	24	3900	0.010	3210	0.047	1.90	19.3	0.64	10.8	110	0.22

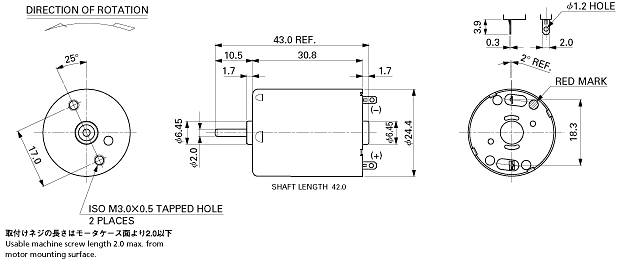

UNIT: MILLIMETERS

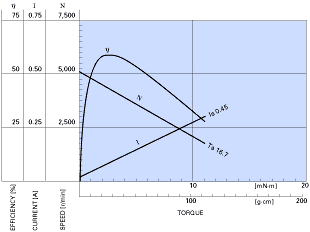

RK-370CA-10800

24.0V

chart

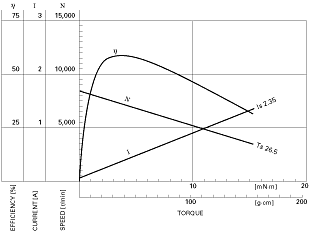

RK-370CA-18260

13.0V

chart
