RS-365SH
RS-365SH
Carbon-brush motors
OUTPUT:0.7W-35W (APPROX)
WEIGHT:54g (APPROX)
Typical Applications :
Home Appliances> Hair Dryer / Massager / Vibrator

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE		 NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min A r/min A mN·m g·cm W mN·m g·cm A
RS-365SH 2080(*1) 6 - 20 18 19400 0.22 16060 1.06 7.09 72.2 11.9 41.2 420 5.10
12190(*2) 12 - 42 24 10500 0.080 8430 0.32 5.04 51.4 4.44 25.5 260 1.32
(*1) CCW shifted commutation (CCW+)
(*2) CCW shifted commutation (CCW+), Without vent holes
The terminal position against the tapped holes varies depending on CW+/NEUTRAL.

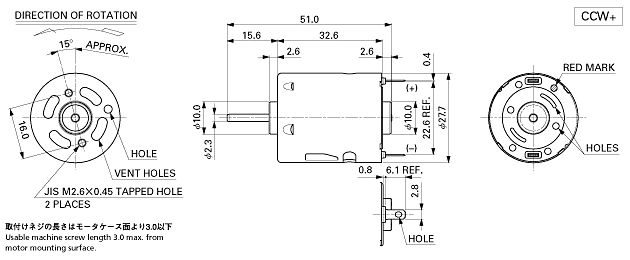

UNIT: MILLIMETERS

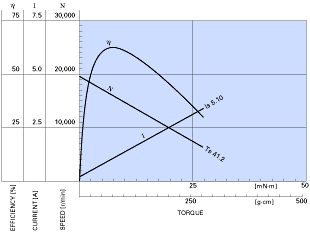

RS-365SH-2080 18.0V
chart

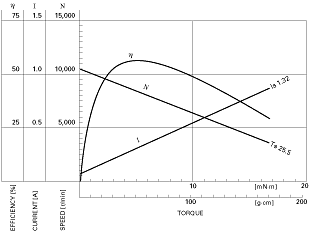

RS-365SH-12190 24.0V
chart
