| RS-385SH
|
|||||||||||||
 |
| ||||||||||||
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| V | r/min | A | r/min | A | mN·m | g·cm | W | mN·m | g·cm | A | |||
| RS-385SH | 2270(*1) | 6 - 24 | 20 | 16400 | 0.18 | 14010 | 1.06 | 9.56 | 97.5 | 14.0 | 65.7 | 670 | 6.20 |
 |
| (*1) CCW shifted commutation (CCW+) |

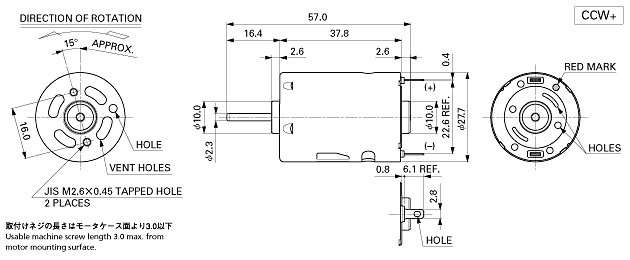

| The terminal position against the tapped holes varies depending on CW+/NEUTRAL. |
|
|
 |
| UNIT: MILLIMETERS |
|
|
|
|||||
| ||||||
