Small Digital Curtain PIR

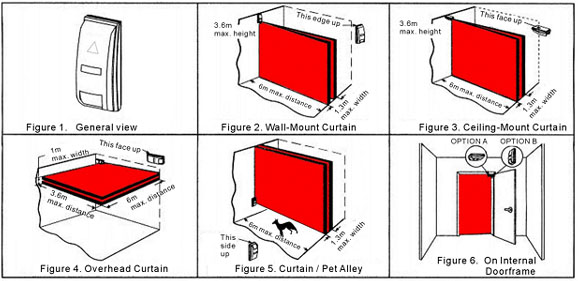

The PS-462 is the smallest and most elegant digital curtain-pattern PIR detector using advanced digital True Motion Detection Technology. Once motion signal is received, it compares and analyses the signal with the true motion signal in database memory and ignores extraneous noises in order to eliminate false alarm. Detailed coverage patterns and mounting alternatives are given in Figures 2 through 6 below.


  • Suitable for protection of window, door, balcony and ceiling
  • Vertical or horizontal protection
  • Microprocessor controlled
  • True Motion Detection Technology
  • Adjustable range 2-6m
  • Fire resistance casing

    		•


    Model PS��462
    Sensor Low noise high sensitivity dual element rectangular PIR sensor
    Sensing Speed 0.2��6 m/second
    Operating Temperature ��10�� to 50��
    Power Source DC10-16V, 12.5mA
    Lens Fresnel vertical protection lens
    Protection Range Distance: 2m, 4m, 6m selectable Height: 3.6m
    Mounting Height Max 3.6m
    Mounting Wall mount or ceiling mount
    RFI Protection Anti RFI, > 20V/m to 1000MHz
    Alarm Indication Red LED on
    Alarm Period 3 seconds
    Alarm Output Normal close, 20 ohm internal resistance, 24Vdc  0.1A
    Tamper Protection Normal close, open circuit when cover is removed, contact 0.1A, 24Vdc
    Weight 30g
    Dimension 28��70x25mm (WxHxD)
