695

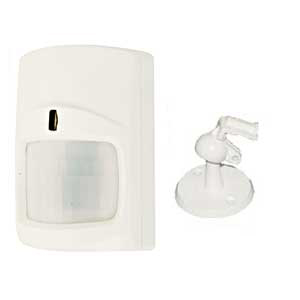

PIR Detector


PDF: size: 154KB

The product is a new type of sensor switch; it adopts infrared energy detector, IC and SMD technology. When one enters the product��s detecting range, the infrared sensor work and output signal to its matchedcontrol unit, the control unit will alarm.


  • Selectable pulse width;
  • High interference immune;
  • Automatic temperature compensation;
  • Tamper switch;
  • vertical adjustment sensitivity;
  • Preventing pet design;
  • Installation flexible and convenient;
  • Sensitivity adjustable.

    		•


    Model PS��695
    Power supply 8~16VDC
    Warm-up time 30s
    Alarm time 1~2s
    Sense degree 140
    Sense distance 12m(max)
    Working temperature: -10 C ~+40 C
    Relative humidity <93%RH
    Installation height 1.5~3.5m
