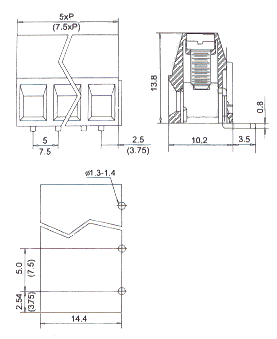

      Model No.: 128R-500 / 128R-750
PCB Terminal Block
Contact :Steel Stamping Zinc Die
(metal housing) Casting or Brass
Machined ( Option )
Terminal screw : Steel Galvanized and chormatized of Nickel plated or Tin plated (Standard option)
Suface of solder tail : Brass With Tin Plated
Insulator body : Polyamide(Glass filled)
(housing) (UL94V-0)
Voltage rating : 300VAC
Current rating : 10Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 12-24AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M2.5
Satety apporval :
